200 HS Antenna

R ugged, Wireless Low Frequency 200 MHz GPR System

GSSI introduces the GS Series, our next-generation family of high-performance antennas targeting applications that require deeper penetration depths. The first antenna in the series is the 200 HS.

Description

Specs

Description

This digital, wireless antenna features a 200 MHz center frequency and employs GSSI’s proprietary HyperStacking® technology. This technology improves signal to noise performance and increases depth penetration under all soil conditions. The GS Series is ideal for geophysical, geotechnical, and environmental applications that require high reliability under challenging survey conditions.

HyperStacking Technology & Improved Depth
The GS Series uses our patented HyperStacking Technology to provide clearer data, from superficial features to deeper characteristics. Our 200 HS antenna achieves greater depth penetration, nearly double than conventional GPR antenna designs.

Specs

Technical Specifications
Center Frequency	200 MHz
Max Depth	21 m (70 ft)*
Battery Life	4 hours
Environmental Rating	IP65
Vibration	Mil-STD-810G Method 514.6C Category 9
Operating Temperature	-10°C to 40°C external (14°F to 104°F)
Weight	17.9 kg (39.6 lbs)
Dimensions	64.8 x 64.8 x 34.3 cm (25.5 x 25.5 x 13.5 in)
Model	50200HS
Storage Capacity	SIR 4000: 32 GB, Panasonic Toughpad G2: 512 GB
Optional Software	RADAN 7
Accessories	Wheel kit, GPS mount, Transit case, Survey wheel
Components	Controller: SIR® 4000 (with WiFi Module) or Panasonic® Toughpad G2 200 HS Antenna with HS Module Tow Handle Lithium-ion battery (4) Dual-bay battery charger

The GS Series is typically used for:

Water Table Mapping
Bedrock Profiling
Bathymetry
Sinkhole Areas
Stratigraphy
Deeper Utility Detection
Archaeological Investigations

Features

Below, you will find the main features of the product.

Acquire Data Wirelessly

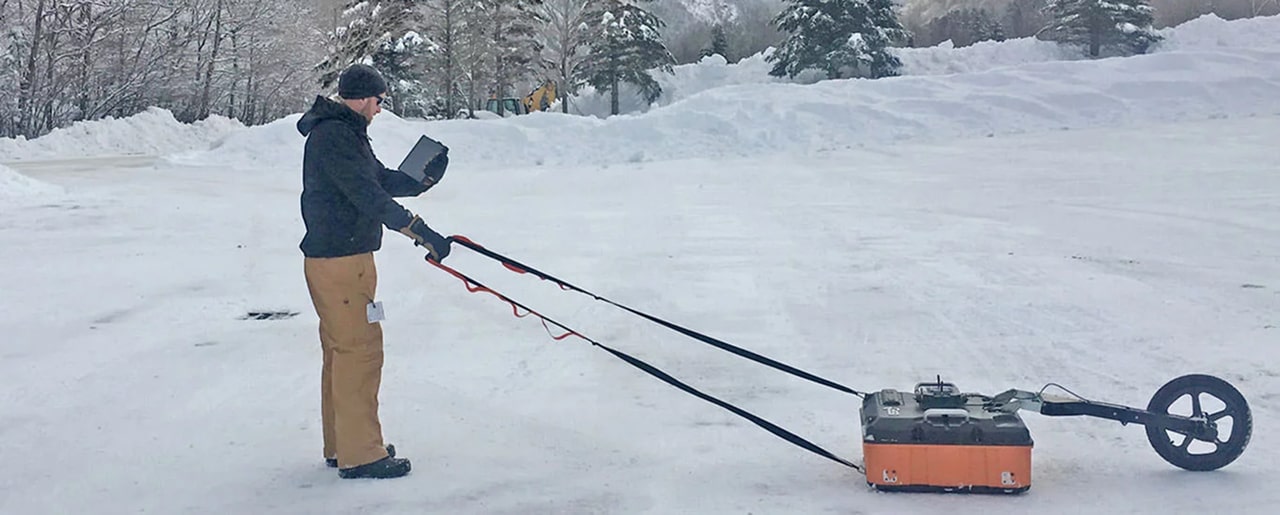

Identify geophysical characteristics easily with the wireless 200 HS and HS Module. The HS Module connects the SIR 4000 or Panasonic Toughpad G2 to the antenna and allows the user to leverage a single HS Module across all GS Series antennas.

System Versatility

The GS Series caters to new and existing users with two controller choices; SIR 4000 with a WiFi module, or Panasonic Toughpad tablet. IP 65 rated, the 200 HS antenna can withstand dust and is water resistant.

Advanced Features

Advanced features designed for survey efficiency including an integrated GPS, and can accommodate an external GPS mount. Visualize data on the tablet with a GIS map mode. Use accessories to customize survey collection modes.
