Zenmuse S1

    DJI's First Spotlight for Multi-Payload Drone Platforms

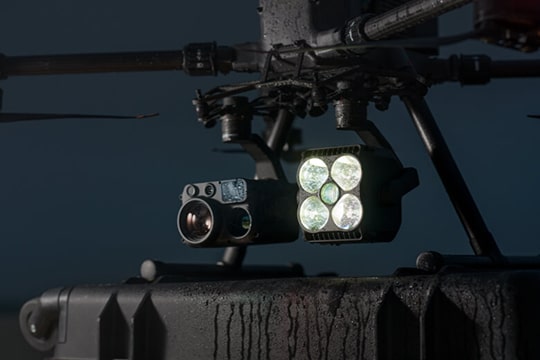

    Zenmuse S1 is DJI‘s first spotlight designed for multi-payload drone platforms, compatible with DJI Matrice 400, Matrice 350 RTK and Matrice 300 RTK. Utilizing the LEP technology, it offers high brightness and long illumination distance, and supports multiple lighting modes. This makes it ideal for public safety, emergency rescue, inspection, and other nighttime operations.

    Zenmuse S1
    Purchase
    Learn more

    Zenmuse S1 delivers a maximum central illuminance of 40 lux at 100 meters, providing ample lighting in dark environments to clearly distinguish details of the subjects. Additionally, the power consumption in the High Beam mode is only 24 W, reducing the power load on the drone and helping to maintain the flight time.

    When mounted with the Zenmuse H30 Series on Matrice 400, Zenmuse S1 employs gimbal synchronization and software algorithms to automatically calibrate its optical center in real time, intelligently aligning with the camera view and effectively preventing light deviation.

    Burn Protection
    Zenmuse S1 features a plastic casing with a contact surface temperature that does not exceed 50° C (122° F), effectively preventing burn risks.

    Collaborative Ground and Air Operations
    When used with Matrice 400 and the Zenmuse H30 Series, Zenmuse S1 supports remote real-time video viewing and spotlight control through DJI FlightHub 2.

    Strong Environmental Adaptability
    With an IP54 rating for dust and water resistance, Zenmuse S1 can operate in ambient temperatures ranging from -20° to 40° C (-4° to 104° F), making it adaptable to various operating environments.

    View product Datasheet

    Features

    Below, you will find the main features of the product.

    Both On Mode

    Engages both low and high beams simultaneously, delivering greater central illuminance than the High Beam mode alone. It maintains the FOV of the Low Beam mode while extending the observation distance up to 500 meters. This mode offers maximum illumination coverage for comprehensive situational awareness.

    Synchronized Control

    When two Zenmuse S1 are mounted on Matrice 400, both spotlights can be controlled at the same time, including turning the light on/off, brightness adjustment, and gimbal angle control. This feature is ideal for scenarios requiring large-area illumination, such as nighttime search and rescue operations.

    High Beam Mode

    Utilizing the LEP (Laser Excited Phosphor) technology for enhanced light penetration, this mode offers a 4° field of view (FOV) at a distance of 300 meters. It covers the illumination range of a camera at 15x zoom or above, enhancing efficiency in emergency rescue and public safety operations.

    Strobe Mode

    Zenmuse S1 supports high-frequency strobing to effectively alert and draw attention from target individuals, making it particularly useful for signaling in emergency rescue and public safety scenarios.

    Low Beam Mode

    Provides a 15° field of view (FOV) within a distance of 150 meters, covering the illumination range of a camera at 5x zoom or above. This mode is suitable for most short-distance search and inspection needs.

    Payload Protection

    Zenmuse S1 is equipped with multiple protection mechanisms for temperature, overcurrent, power, and more, enhancing the product's reliability and lifespan.
