Geomagic for SOLIDWORKS

Effective reverse engineering

With Geomagic for SOLIDWORKS, by Artec 3D, you can quickly transform 3D scans into solid CAD models, a powerful toolset seamlessly integrated into SOLIDWORKS.

Geomagic for SOLIDWORKS

Accelerate your reverse engineering process by exporting 3D scans directly into SOLIDWORKS. Effortlessly extract essential features to create precise CAD surfaces and utilize a comprehensive 3D modeling toolset to prepare complex products for manufacturing.

Create editable scan-based CAD models in just five simple steps.
With Artec 3D scanning, SOLIDWORKS, and Geomagic’s specialized plug-in, you can achieve a seamless scan-to-CAD workflow. Accurately capture intricate objects and transform the resulting meshes into solid CAD models for applications such as legacy part digitization, product upgrades, failure analysis, and more.

  1. Quickly capture with one or more Artec 3D scanners
    Digitize any part for design, iteration, and production with Artec 3D scanning. Auto-capture at a microscale with Artec Micro II, flexibly scan with 0.1mm accuracy using the wireless Artec Leo, deploy Ray II to digitize at scale, or merge Leo & Ray II data to maximize resolution.
  2. Seamlessly optimize meshes for SOLIDWORKS export
    Before export, you can refine meshes in Artec Studio, or polish them further with Geomagic for SOLIDWORKS’ advanced processing tools. Send 2D sections, CAD objects, or entire meshes as needed, to extract and utilize design information as you go.

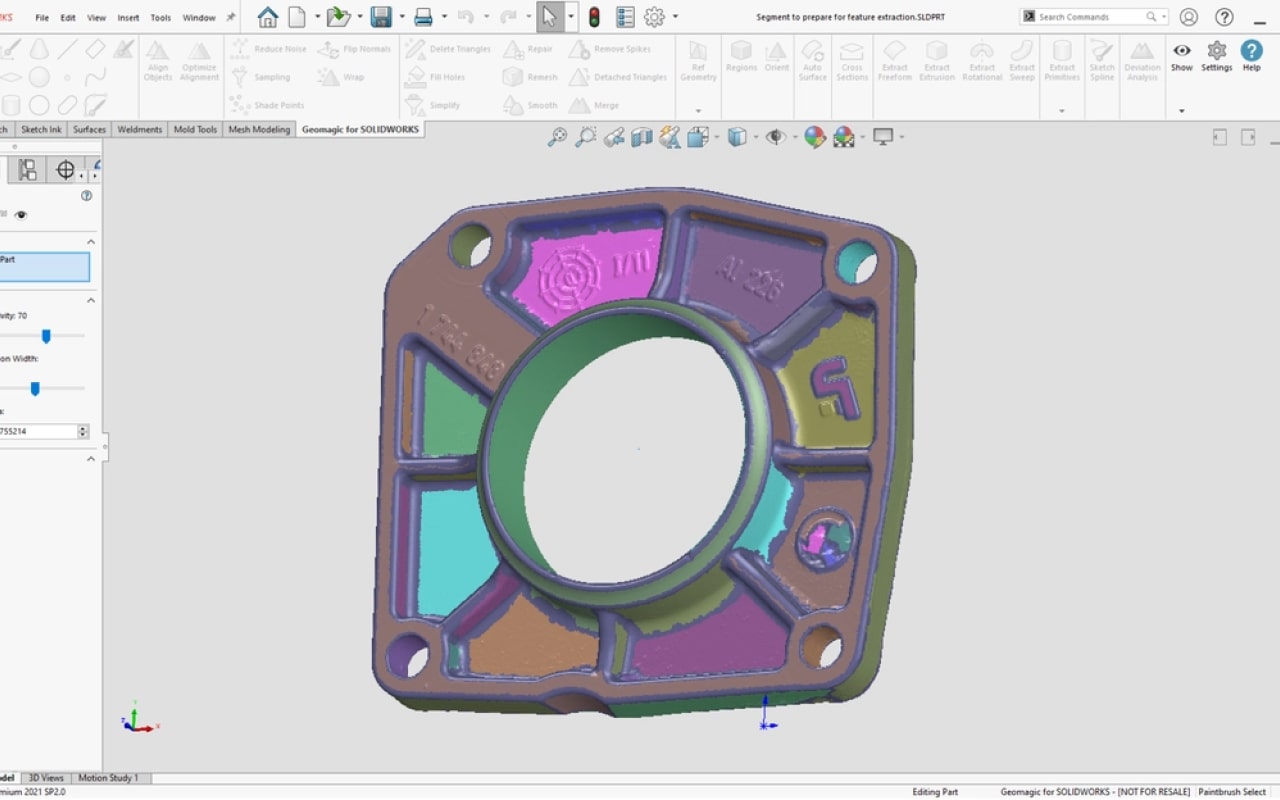

  3. Segment to prepare for feature extraction
    Geomagic for SOLIDWORKS supports hybrid and manual reverse engineering, as well as a combination of the two. Use intuitive region grouping to extract regions then fit primitives, or create mesh sections to obtain a reference for sketching, the choice is yours.
  4. Create & combine 3D elements into solid CAD models
    With a plug-in-enhanced SOLIDWORKS toolset, extracting primitives and other 3D geometry for extruding, sweeping, or revolving sketches is easier than ever. Combining resulting 3D elements yields solid CAD models faithful to the mesh data they’re based upon.
  5. Analyze feature deviation in real time
    While reverse engineering, you can analyze deviation at any point to compare surfaces or bodies with imported meshes. Go feature-by-feature adding constraints as needed, until you’re left with manufacturing-ready, sub-millimeter-accurate CAD models.

Why Use Geomagic for SOLIDWORKS with Artec Scanners?
Integrating Geomagic for SOLIDWORKS into your Artec 3D scanning workflow enables rapid CAD model creation with unmatched accuracy and resolution, simplifying even the most complex reverse engineering tasks.

  • Reverse Engineer Anywhere
    With Artec’s lightweight and ultra-portable handheld 3D scanners, you can digitize and reverse engineer on-site, in cleanrooms, or directly on the factory floor, offering unmatched flexibility.
  • Trusted QA Results
    Achieve precision down to 5-micron accuracy, capturing even the tiniest parts. Transition seamlessly from scan to CAD and perform in-depth quality analysis with Geomagic for SOLIDWORKS.
  • Familiar Interface with Enhanced Tools
    Export meshes, CAD objects, or sections from Artec Studio with one click, then refine them in the familiar SOLIDWORKS environment, augmented by Geomagic’s advanced reverse engineering toolkit.
  • Fast Legacy Part Repair
    Quickly digitize broken critical parts with Artec 3D scanning, reverse engineer them in Geomagic for SOLIDWORKS, and manufacture precise replacements to keep your operations running smoothly.
  • Next-Level Sketching
    While Artec Studio covers reverse engineering essentials, Geomagic for SOLIDWORKS provides advanced tools to handle more complex tasks with ease and precision.
  • Versatile Scan-to-CAD Capabilities
    Whether working with microscale-accurate scans from the Artec Micro II or long-range LiDAR data from the Artec Ray II, Geomagic for SOLIDWORKS can edit high-resolution data on any scale.
  • Target-Free Digitization
    Artec scanners require no positioning targets, offering contactless digitization that saves hours of preparation while eliminating the risk of product damage.
  • Easy and Intuitive Setup
    Artec handheld 3D scanners are designed for quick setup and ease of use. With less than an hour of training, you can start digitizing products right out of the box.
  • Minimize manufacturing costs
    Carry out value analyses to identify new ways of driving down your business’ manufacturing costs, while maintaining end-product quality, reliability, and efficacy.
  • Diagnose & fix designs
    Digitize outdated or damaged products to uncover design intent, identify baked-in faults, and make improvements that fix and prevent issues reoccurring.

Features

Below, you will find the main features of the product.

Accelerate product iteration

Don’t prototype physically, digitize products with Artec 3D scanning, then reverse engineer and make any upgrades in Geomagic for SOLIDWORKS in a fraction of the time.

Unlimited complexity sketching

Design around existing parts, no matter how complex the shape, and create models that slot perfectly into place with Geomagic’s industry-leading sketching tools.

Recover lost design data

Bring legacy parts into a virtual environment packed with proven CAD-editing tools for quickly and easily iterating upon the most intricate designs.
